主要用途
適用于中藥材的潤制、蒸制，以利于藥材的炮制、加工，縮短生產周期，保證藥物品質。

Main uses

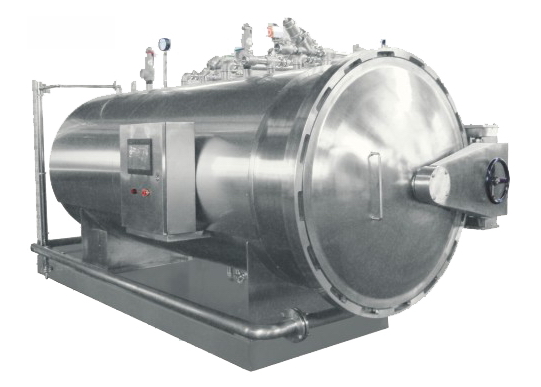

Suitable to moisten and steam herb to shorten the cycle of herb-processing.

主要特點
本機采用PLC+觸授屏控制，數控化生產，可設定及存貯溫度、轉速、時間、壓力、液位等工藝參數。本機采用先進工藝，可減少藥物有效成分流失，提高生產效率，本機開關門安全靈活，電氣控制系統及管路氣動元件操作方便.設定簡單.顯示直觀.控制穩定性高.符合GMP要求。

Main technical characteristics
Digitally operate able, PLC+ operable screen, the parameters of the temperature, time, pressure and liquid level could be set easily. With advanced technologies, the processing cycle is shortened and the efficiency is improved. The machine is easy to operate and maintain . could meet the requirements of GMP.

主要技術參數 Main technical parameter

型號 Type	全容積 Volume (m³)	工作壓力 working pressure (MPa)	工作溫度 Tem (℃)	筒體尺寸 Dimension (mm)	蒸汽耗量 Gas consumption (kg/h)	外形尺寸 dimension (mm)	總重量 weight (kg)
RWYZ2000	2	0.35	147	φ1000x2250	100-200	2820x1620x1820	1660
RWYZ3600	3.6	0.35	147	φ1200x3000	120-300	3600x1850x2050	2200
